Coatings

A resin system enabling cost-effective, high-performance, hydrophobic coating solutions

Proxxima resin systems are an ultra-low viscosity component that allows for flexibility in coating formulations, bringing potential cost and application advantages. Fast, while still tunable, curing provides coating application efficiency by vastly reducing the time of service.

Proxxima systems are nearly 100% reactive and do not require formulation with carrier solvents due to their low viscosity, meaning lower volatile organic compounds (VOC) losses during application than coating formulations based on typical thermosets. These unique resins can be the primary component in a Proxxima resin-rich formulation or formulated in combination with other chemistries to create hybrid coating formulations that combine the functional benefits of multiple chemistries in a single coating solution.

Discover how Proxxima™ systems make durable, fast curing protection practical

Ultra-low viscosity

Unique solution to enhance formulation development

~20 cP (25°C) and 5-10% lower density than traditional thermosets
Increase % solids in final formulation
Support increased filler loading

Hydrophobic

Superior anticorrosion performance

Outperforms industry references in TM 21442 CUI testing
Less than half the water uptake for Proxxima polymer versus traditional epoxy
Chemically resistant to low and high pH environments

Durable

Stronger coatings last longer in the field

Up to 2.5x higher impact resistance than epoxy (1,130 N-mm, method based on ASTM D2794)
3x more flexible than epoxy (89 mm radius with no damage, method based on ASTM D522)

_{*Outstanding flexibility as measured by mandrel bend testing}

Application efficiency

Create operational value

Fast, controllable application: Dry to touch in as little as 10 minutes
Lower total costs and faster return to service
Potential for less coating layers to meet standards

invisible spacing

Applications

Proxxima systems based coatings excel in a wide range of challenging environments, making them ideal for:

Energy sector: Storage tanks, piping, corrosion under insulation, liners, floor coatings
Rail sector: Exterior surfaces, interior liners, corrosuion under insulation
Marine sector: Chemical tanker liners, deck coatings, piping, exterior surfaces
Industrial sector: Storage tanks, piping, corrosion under insulation, liners, floor coatings

Proxxima products enable the development of coatings that are anti-corrosion, durable, reliable and rapid curing, which reduces coating application complexity and cost and increases long-term performance.

Contact an expert

invisible spacing

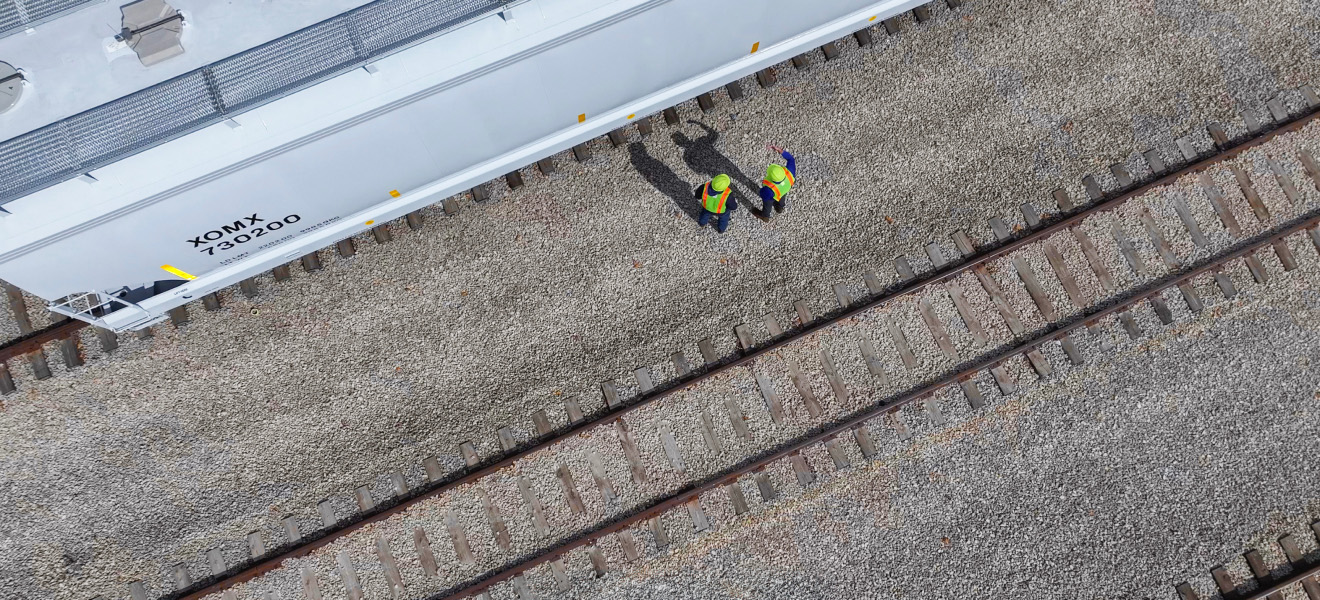

Re-engineering railcar coatings

Advanced Polymers Coatings (APC) Tri FLEX™ and Proxxima resin systems collaboration

This project marks a major step forward in railcar protective coatings. APC’s innovative TriFLEX system featuring Proxxima polyolefin thermoset resin technology results in a high-performance, single-application coating that has exceptional anticorrosion and UV resistance. This single coat technology can extend service life to an estimated 25 years, far beyond traditional epoxy railcar exterior coatings. ExxonMobil is an early adopter of TriFLEX technology, applying it across its commercial rail fleet. It’s a collaboration that offers reduced maintenance and downtime, resulting in up to 30% cost savings over the life of a rail car.

Read the full story

invisible spacing

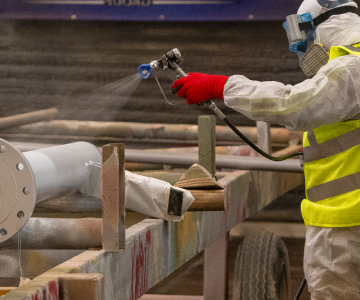

Processing flexibility

Proxxima resin systems can be formulated to fit a range of application techniques, offering flexibility for manufacturers and applicators.

Explore all compatible process methods

Proxxima systems can be used as the primary component in a rich resin formulation or combined with other chemistries as a hybrid formulation.

Proxxima system rich coating formulation

Nearly 100% solids (reactive) – no traditional carrier solvent
One coat testing demonstrated sag resistance > 1 mm
Hydrophobic – excellent adhesion and properties after hot/wet aging; resistant to water ingress
Chemically resistant to high pH environments
Significantly improved toughness vs epoxy (impact & bend)

Hybridized with other coating chemistries – expand what is possible by capturing the ‘best of both worlds’

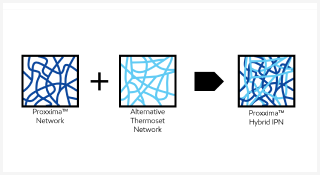

Interpenetrating Polymer Networks (IPN)

A combination of two or more different chemistries in a single formulation allows for reduction in solvents vs. traditional multi-function thermoset services

Proxxima system lowers viscosity (less solvent, higher solids) and increases reactivity of the coating formulation
Potentially used in conventional spray equipment with a pot life of 1-4 hours

invisible spacing

Contact our team to discover how we can help you achieve your coatings goals.

Contact our team
